DMS (Stand-alone type Driver Monitoring System)
STD120 / STD320
Operator monitoring system consisting of a system and camera in one body
Specification
-
- Part number STD120
- Dimension(mm) 113.5 x 63.3 x 27.0(H)mm
- Key / Button Volume : 4 steps (Mute & 1~3 steps) Sensitivity : 3 steps (stolidity / usual / sensitive)
- Interface Multi-connector
(PWR, GPS, Modem, Vibrator, TV-out)
- MicroSD Support (FW update/Still image store)
- Status LED RGB
- Input Voltage DC 12/24V
- Power Consumption Max. 4.0W
- Operating Temp -20 ~ 70°C
- Mount/ Detection
:Distance - 90 ~ 110Cm
:Roll – ±15°
:Left/Right - ±30°
:Up/Down - ±30°
- Available Now
-

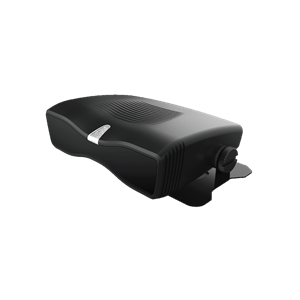

- Part number STD320
- Dimension(mm) 74.5 x 53.0 x 23.5(H)mm
- Key / Button Volume : 4 steps (Mute & 1~3 steps) Sensitivity : 3 steps (stolidity / usual / sensitive)
- Interface PWR, USB2.0, *UART
(*UART : GPS or Car Pulse or External Device)
- MicroSD Support (FW update/Still image store)
- Status LED RGB
- Input Voltage DC 12V
- Power Consumption Max. 3.0W
- Operating Temp -20 ~ 70°C
- Mount/ Detection
:Distance - 60 ~ 80Cm
:Roll – ±15°
:Left/Right - ±30°
:Up/Down - ±30°
- Available Now
DMS (Discrete type Driver Monitoring System)
STD920 / STD720 / STM201(Main System)
Operator monitoring system with separate main system and camera configuration
Specification
- Part number STD920(Camera for commercial vehicle) / STD720(Camera for passenger vehicle) / STM201 (Main system)
- Dimension(W, H, D, mm) STD920 88 x 33 x 27 / STD720 66 x 30 x 20 / STM201 107 x 107 x 53
- Configuration Volume : 4 steps (Mute & 1~3 steps) Sensitivity : 3 steps (stolidity / usual / sensitive)
- Interface (MS) PWR, GPS(UART), Speaker, Modem(RS232), OBDⅡ scanner(UART), CAN±, Turn signal(R/L), Car pulse
- MicroSD Slot Support
- Bluetooth BLE4.2
- Status LED DC(RGB), MS(R, G, G)
- Input Voltage DC 12/24V
- Power Consumption Max. 3.0W @ DC-A / Max. 4.0W @ DC-B
- Operating Temp -20 ~ 70°C
- Mount/ Detection
:Distance - 60 ~ 80Cm(DC-A) / 90 ~ 110Cm (DC-B)
:Roll – ±15°
:Left/Right - ±30°
:Up/Down - ±30°
- Available On demand
DSM+FHD Car Driving Recorder
DSM + FHD 2CH
World's first black box with drowsy driving warning system for safety (front, rear and driver camera: 3 channels camera)
FHD Car Driving Recorder
FHD 2CH
Specification
-
- Dimension 98mm x 63 mm x 30 mm
- Weight 95.5g
- LCD 3.5” TFT LCD
- Storage Supported up to 128GB (FAT32 format only)
- Rec Mode Driving / Driving shock / Parking / Parking shock / Manual
- Resolution Front Camera: FHD(1920X1080), Rear Camera: FTP(1920X1080)
- Front Camera 2M CMOS Sensor
- Rear Camera 2M CMOS Sensor
- Audio/Speaker Built-in microphone/speaker
- Frame Rate Up to 30 frames
- G-sensor 3-axis acceleration sensor
- GPS External GPS port support
- Input Voltage DC 12/24V support
- Battery Super capacitor
- Operating Temp -20 ~ 60˚ C
-
- Dimension 65.7mm x 39.65 mm x 25.16 mm (Excluding cradle bracket)
- Weight 36g
- Color Black
- LED Red, Green, Blue
- Apply voltage 12/24V
- Detection item Drowsiness 1, 2 / Not looking forward / No face detected
- Recognition distance 60cm ~ 80cm
- Installation location Above the column cover or at the top of the cluster
- Operating Temp -20 ~ 60˚ C

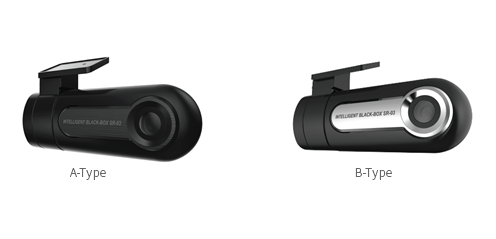

Cost-effective HD Car Driving Recorder
Designed for ODM customers / Universal housing, rear case / Design variation service for front case and custom decoration
Specification
- Frame Rate 30fps@D1(720x480)
- Angle of view D 123o/ H 92o/ V 62o
- Rec Mode Always : 1min/file
Event : 30s (Before event 10s+After event 20s)
Manual : 30s (Before event 10s+After event 20s)
Motion: 30s (Before event 10s+After event 20s)
- Display N/A
- Output format Video : mp4(H.264)Audio : PCM
- Storage internal eMMC
- Input Voltage 12/24Vdc
- Operating Temp -10 ~ 70°C
- Dimension 96.0x52.5x25.0mm
- Miscellaneous Format-free
- Available NOW
2Ch FHD Internal GPS Car Driving Recorder
FHD 2Ch or FHD+HD
Component: Front video black box, rear camera, cradle, external GPS, continuous power cable, rear camera cable
Specification
- Part number FHD 2Ch or FHD+HD
- Sensor FHD (SOI) : Sony IMX307, REAR CAMERA : GC2053 (FHD), REAR CAMERA : SOI JX-H62 (HD)
- CPU Cortex A7 1.2GHz
- Frame Rate FHD (SOI), REAR CAMERA : 30fps@FHD(1920x1080), REAR CAMERA : 30fps@HD(1920x1080)
- Angle of view FHD (SOI) : D 135o/ H 118o/ V 68o, REAR CAMERA : D 125o/ H 99o/ V 76o, REAR CAMERA : D 138o/ H 107o/ V 80º
- Recording Mode Regular: 1min/fileEvent & Manual: 30s (Before event 10s + after event 20s)
- Display(Part # variation) 2.8” TFT LCD (320x240) TN
- Output format Video : mp4(H.264)Audio : PCM
- MicroSD Up to 128GB (FAT32)
- Input Voltage 12/24Vdc
- Operating Temp -10 ~ 60°C
- Dimension 98.0x63.0x30(D)mm
- Miscellaneous Format-free / ADAS (LDWS, FVSA)
- Available NOW
FHD/QHD Car Driving Recorder
STF220 / STF221 / STF230
Optionally can connect with rear camera and GPS antenna, ADAS function can work with connected GPS and front case changeable.
Designed for ODM customers, T1 can be submitted within 6 weeks, can be used as a dedicated model depending on the mold cost investment, and the front case and decoration can be modified by the customer.
Specification
- Part number FHD (SOI) : STF220, FHD (SONY) : STF221, QHD (SONY) : STF230
- Sensor FHD (SOI) : SOI F22, FHD (SONY) : SONY IMX307, QHD (SONY) : SONY IMX335
- CPU Cortex A7 1.2GHz
- Frame Rate FHD (SOI), FHD (SONY) : 30fps@FHD(1920x1080), QHD (SONY) : 30fps@QHD(2560x1440)
- Angle of view FHD (SOI) : D 130o/ H 115o/ V 66o, FHD (SONY) : D 134o/ H 118o/ V 68o, QHD (SONY) : D 123o/ H 95o/ V 56o
- Recording Mode Regular: 1min/file
Event & Manual: 30s (Before event 10s + after event 20s)
- Display
A type 3.5” HVGA(480x320) TN
B type 3.5” HVGA(480x320) IPS
C type 4.0” HVGA(480x320) TN
D type 4.0” WVGA(800x480) TN
- Output format Video : mp4(H.264)Audio : PCM
- MicroSD Up to 128GB
- Input Voltage 12/24Vdc
- Operating Temp -10 ~ 70°C
- Dimension 98.0x63.0x30.3(D)mm
- Miscellaneous Format-free / ADAS (LDWS, FCWS, FVSA)
- Available NOW
